Concrete Maturity Sensors vs Test Cylinders: Which Do You Need and When?

Is the concrete strong enough yet?

Every pour ends with the same question. Can we strip the formwork? Can we stress the tendons? Can we load the slab?

For decades the answer came from test cylinders or cubes. You cast them at the pour, cure them, and crush them in a lab days later. The result is reliable, but it describes the specimen — not the concrete in your structure.

Concrete maturity sensors answer a different question. They track the temperature history of the concrete in place and turn it into an estimate of in-place strength, in real time.

So which do you need? Short answer: cylinders prove the mix meets the specification; maturity sensors tell you when the structure is ready for the next step. Most projects benefit from both. This article explains what each method does, where each one falls short, and how to use them together — in the heat of the Gulf and in a Kazakh winter.

What do test cylinders and cubes show?

Cylinders (ASTM C31 / C39) and cubes (EN 12390, GOST 10180) remain the basis of concrete acceptance. Codes such as ACI 318 and EN 206 judge the mix by specimens cast and cured to a standard procedure.

There are two kinds of specimen, and they answer different questions:

• Standard-cured specimens sit in a curing tank at about 23 °C (20 °C for EN cubes). They show the potential strength of the mix. They are the ones used for 28-day acceptance.
• Field-cured specimens are kept next to the structure. They are meant to show when the element is ready for stripping or loading.

What cylinders do well

• Accepted by every code, consultant and authority.
• Measure strength directly, with no calibration needed.
• Give an independent check on the supplier's mix.

Where they fall short

• They are small. A 150 mm specimen cools and heats much faster than a 600 mm slab or a 2 m raft. Its strength history is not the structure's. Usually the specimen runs cooler and under-reports, which is safe but costs programme time; where it runs warmer than the element, the error is on the unsafe side.
• They are slow. Results arrive only at the planned test age, often days after the decision had to be made.
• They are easy to damage. Poor handling, late collection or hot storage on site can lower results and trigger costly investigations.
• They are discrete. You learn the strength at 3, 7 or 28 days — nothing between.

How do maturity sensors estimate strength?

The maturity method rests on a simple fact: for a given mix, strength depends on how long the concrete has been curing and how warm it has been. Warm concrete gains strength faster; cold concrete slower. The method is standardised in ASTM C1074 and described by Carino and Lew (NIST). Our guide to the maturity method (ASTM C1074) covers it in detail.

The most common way to express this is the Nurse-Saul temperature-time factor:

M(t) = Σ (Tₐ − T₀) · Δt

Here M is the maturity in °C·hours, Tₐ is the average concrete temperature over each interval Δt, and T₀ is the datum temperature below which strength gain is taken as zero: 0 °C for many mixes, or determined for the mix by test (ASTM C1074). ASTM C1074 also gives an equivalent-age method based on the Arrhenius equation.

How it works on site

1. Calibrate the mix in the lab. Cast a set of specimens from the project mix, record their maturity, and crush them at 1, 3, 7, 14 and 28 days. This gives a strength–maturity curve for that mix.
2. Embed sensors in the structure. Tie wireless or wired loggers to the rebar at critical points — thin edges, the core of thick sections, areas exposed to wind or sun.
3. Read strength in real time. The sensor logs temperature; the curve converts maturity into estimated in-place strength.
4. Verify. Confirm the estimate with a few cylinders or another in-place test before a critical decision.

What maturity sensors do well

• Show the strength of the structure itself, not a proxy specimen.
• Give continuous data, so stripping or stressing can start as soon as the target is reached.
• Record peak and differential temperatures at the same time — useful for mass concrete and thermal control plans.
• Cut the number of early-age cylinders needed for stripping decisions.

Where they fall short

• The curve belongs to one mix. Change the cement, admixture, w/c ratio or supplier and you must recalibrate.
• It is an estimate. The method assumes the delivered concrete matches the calibrated mix. It does not detect a wrong batch on its own.
• It is not an acceptance test. Most specifications still require standard-cured specimens for 28-day compliance.

Side by side

Which do you need, and when?

In hot climates — UAE, Saudi Arabia, Qatar — concrete often reaches stripping strength sooner than the schedule assumes. Sensors let you use that gain, with one caution: very high early temperatures lower the later-age strength (the crossover effect), so the maturity estimate can run high. Confirm with cylinders or another in-place test before critical steps. Sensors also record peak temperatures and core-to-surface differentials, which specifications for mass pours usually limit (commonly 70 °C peak and 19 °C differential, the ACI 301 defaults — but check your project specification). See our guides to hot weather concreting in the UAE and GCC and mass concrete temperature differential.

In cold climates — Kazakhstan — the risk is the opposite. Concrete may gain strength far more slowly than a 20 °C lab specimen suggests, and it must reach a critical strength before it is allowed to freeze. Maturity data shows when heating or insulation can safely stop.

The best answer: use both

Maturity sensors and cylinders are not rivals. They answer different questions, so the strongest QA plans use each for its own job.

1. Agree the method early. Put the maturity method in the method statement and get the consultant's approval before the first pour.
2. Calibrate each mix to ASTM C1074 using the actual project materials.
3. Place sensors where the decision is made — the weakest or coolest point for stripping, the core and surface for thermal control.
4. Keep standard-cured cylinders or cubes for acceptance. Nothing changes here.
5. Replace most early-age field-cured specimens with sensor readings for stripping and stressing, where the specification allows.

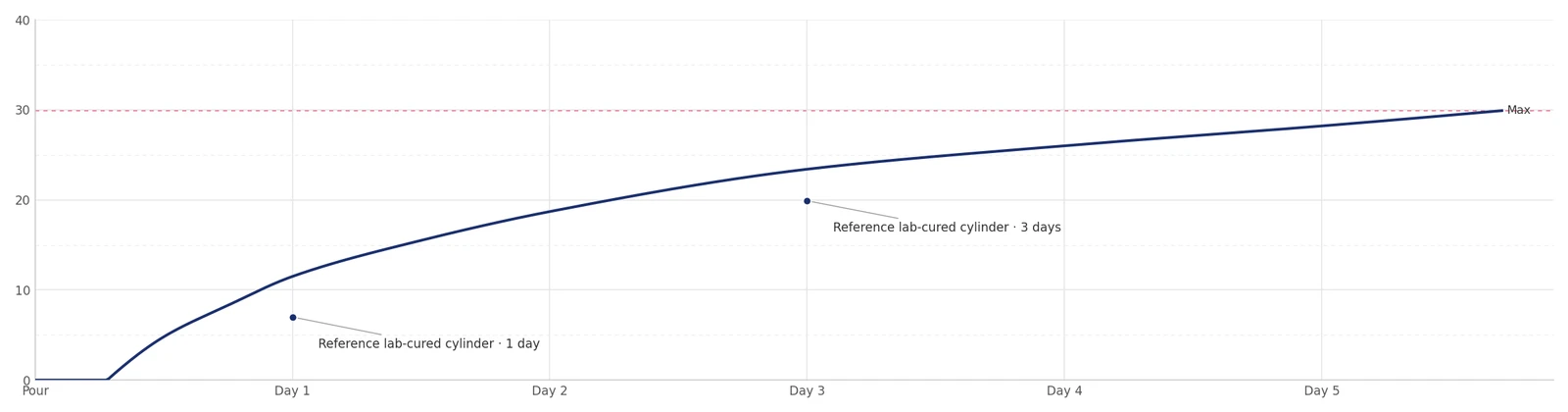

6. Check the curve regularly. Compare sensor estimates with cylinder results. If they drift apart, look for a mix change and recalibrate.

The result: acceptance stays code-compliant, while day-to-day decisions are based on the concrete in the structure. Cylinders protect compliance; sensors protect the programme.

How SHM360 helps

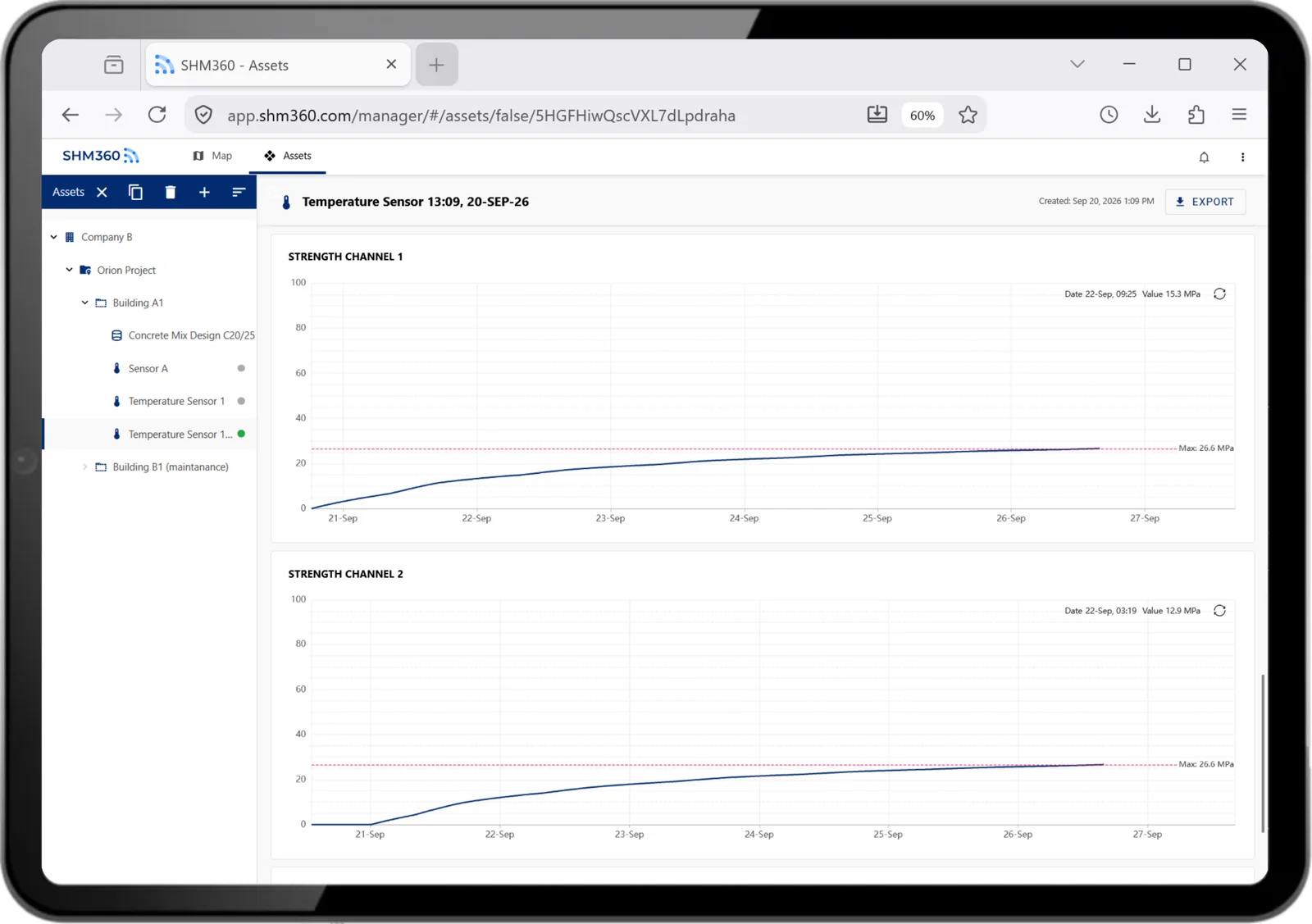

SHM360 estimates in-place strength by the ASTM C1074 maturity method, using a one-time calibration per mix design, alongside — not instead of — the acceptance testing your specification requires. The SHM360-Probe (±0.5 °C accuracy, sacrificial, tied to rebar) connects to the SHM360-Node, a reusable IP68 LTE logger with three probe channels plus ambient temperature. It uploads readings without a gateway and stores them locally if the signal drops. Results appear in the SHM360 platform with live charts, threshold alerts, PDF reports and CSV export, so cylinder results and maturity estimates sit in the same project record. See the temperature and strength sensors or contact us to plan your next pour.

References

• ASTM C1074 — Standard Practice for Estimating Concrete Strength by the Maturity Method
• ASTM C31 / C39 — Making, curing and compressive testing of cylinder specimens
• ACI 228.1R — In-Place Methods to Estimate Concrete Strength
• ACI 318 — Building Code Requirements for Structural Concrete
• EN 206 and EN 12390 — Concrete specification and testing of hardened concrete
• Carino, N.J. and Lew, H.S. (2001), The Maturity Method: From Theory to Application, NIST
